Industrial Products

Closure Stock for Pharmaceutical and Liquor Sector

Form: Sheet and Coil
Alloy /Temper : AA 8011 / H14
Thickness : 0.125 –0.23 mm
Width : 840-870 mm
Length : As required up to 1000mm length

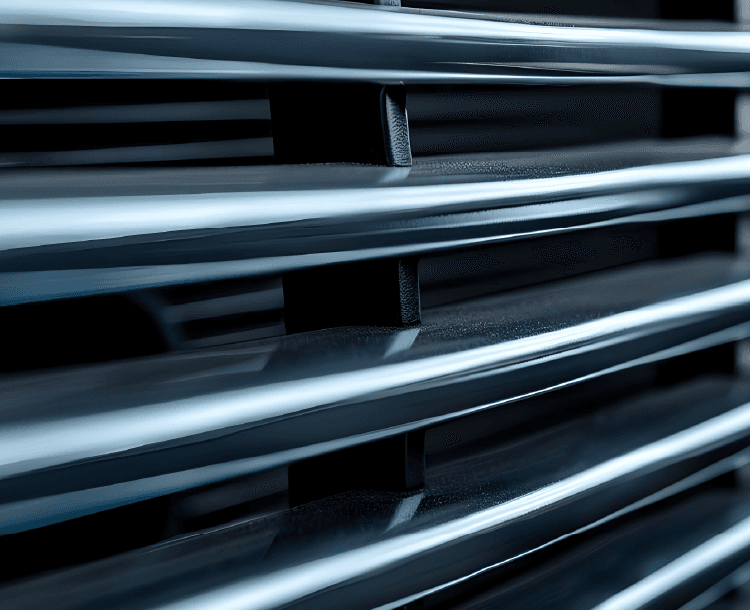

Fin stock for Air conditioner fins

Form : Coils
Alloy & Temper : AA1100,AA8011,/H22,H24,Soft
Thickness : 0.095 to 0.160 mm
Width : 50 – 914 mm

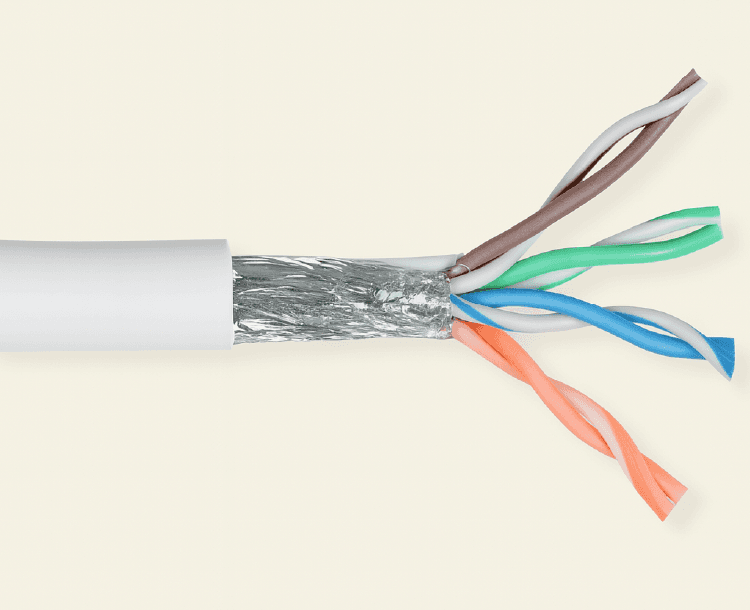

Cable wrap stock for telecommunication cables

Form: Coil
Alloy & Temper : AA 1100 / Soft
Thickness : 0.15 –0.20 mm
Width : 914 mm max
Length : As required

Light Gauge foil for confectionery packaging

Form : Foil rolls
Alloy & Temper : AA1235 , AA8011 / Soft
Thickness : 0.009-0.015 mm
Width : 350-950 mm
Core ID: 76 , 152 mm on Steel/Aluminum
Coil OD : 300-600 mm
For 9 microns - max 100 Nos/Sqmtr
For 12 microns - max 50 Nos/Sqmtr

The GFL Advantage: Light Gauge Foil
Our Light gauge foils (9 micron/ 11 micron/
12 micron) are produced to International
Standards
We have also achieved minimal pinhole
count in the 9 and 12 micron foils as per
EN 546.
“ GFL Technology & process is unique
to achieve International Standards”

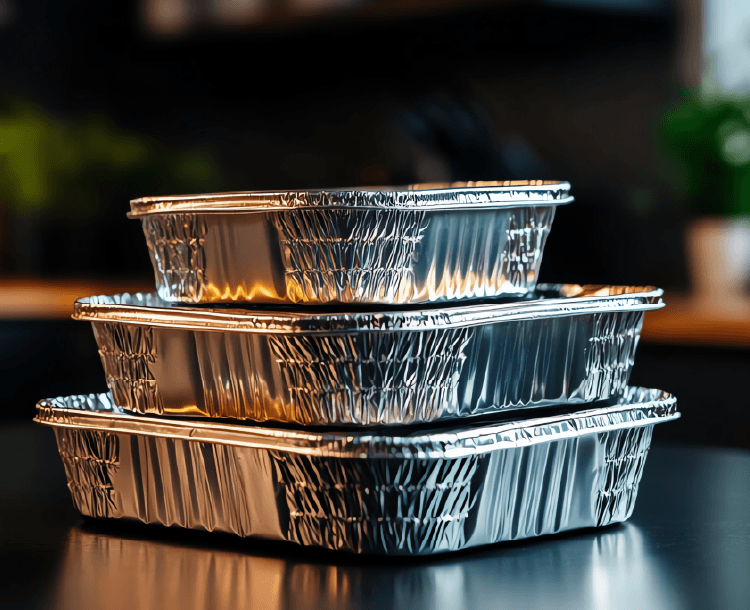

Tagger Foil

Hard foil 0.100mm to 0.0150mm,
mainly used to make Food containers
& Lids.

Bare foil for Pharma / Blister Packaging

Form : Foil rolls
Alloy & Temper : AA8011,AA1235 /
Soft ,Hard
Thickness : 0.020-0.030 mm H &
0.025 to 0.04 mm Soft
Width : 150-950 mm
Core ID: 76, 152 mm on Steel/Aluminum
Coil OD: 300-600 mm

General Engineering Quality Sheet

Form : Sheet / Coils
AA8011
Thickness - 0.30 to 3mm
Width : 914 , 1219mm
Length : 1219 -2438 mm

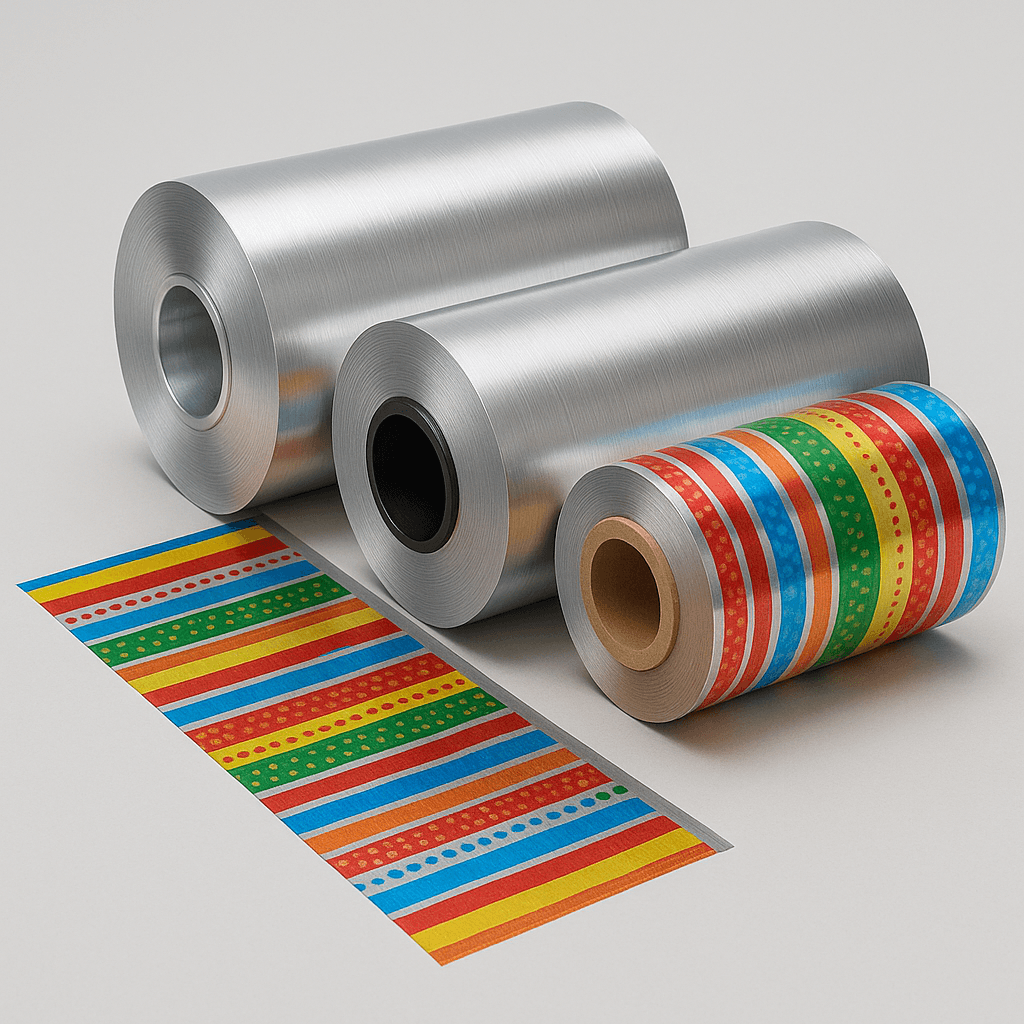

Foil Rolls (Jumbo / Multi Slit) – Plain

Alloy & Temper : AA8011, Soft

Aluminum Thickness: 0.025 to 0.04 mm Soft

LDPE: 30 to 50 GSM

Width: 150 - 990 mm

Core: ID76, 152 mm

Core Material: As per Customer
Requirement (Aluminum/ Plastic/Card Board
Cores)

Coil OD: up to 400 mm

Pin Hole Count: Nil as per EN 546

D.M.F. No. Assigned: 25725

Foil Rolls (Jumbo / Multi Slit) – Printed

Alloy & Temper: AA8011, Soft

Aluminum Foil Laminate Foil Thickness:
0.025 to 0.04 mm Soft

LDPE: 30 to 50 GSM

Width: 150 - 500 mm

Core: ID76, 152 mm

Core Material: As per Customer Requirement (Aluminum/Plastic
/Card Board Cores)

Coil OD: up to 400 mm

No. of Color's to be

printed on Laminate: up to 5 color

Reverse Printing: up to 2 color

Shades & Design: As per Customer's Requirement

Pin Hole Count: Nil as per EN 546

D.M.F. No. Assigned: 25725

Foil Rolls (Jumbo / Multi Slit) – Plain

Alloy & Temper: AA8011, Hard

Aluminum Thickness: 0.02 to 0.03 mm Hard

HSL Coating Thickness: 4 – 6 GSM or
6 – 8 GSM or as specified by customer

Width: 150 - 990 mm

Core ID: 76, 152 mm

Core Material: As per Customer Requirement
(Aluminum/Plastic/Card Board Cores)

Coil OD: up to 400 mm

Pin Hole Count: Nil as per EN 546

D.M.F. No. Assigned: 25585

Foil Rolls (Jumbo / Multi Slit) – Printed

Alloy & Temper: AA8011, Hard

Aluminum Thickness: 0.02 to 0.03 mm Hard

HSL Coating Thickness: 4 – 6 GSM or 6 –
8 GSM or as specified by customer

Width: 150 - 500 mm

Core ID: 76, 152 mm

Core Material: As per Customer Requirement
(Aluminum/Plastic/Card Board Cores)

Coil OD: up to 400 mm

No. Of Color's to be printed: up to 5 color

Reverse Printing: up to 2 color

Shades & Design: As per Customer's
Requirement

Pin Hole Count: Nil as per EN 546

D.M.F. No. Assigned: 25585
